Display sizes cheat sheet
This page puts the standard sizes of our most-used displays in one place, so you can check a size before you brief a designer, book a space or place an order. All sizes are in millimetres or metres, width first, then height.
Where there's more to know, we link to a fuller guide or the product page, which lists the artwork templates for each size. Many of these displays can also be made to a custom size, so if your space doesn't suit a standard one, just ask.
The cheat sheet
| Display | Standard sizes | Good to know |
|---|---|---|
| Premier pull-up banner | 500, 850, 1,000 or 1,200mm wide. 1.5, 1.8, 2.1 or 2.4m high | 850mm × 2.1m is the most popular. The 500mm version is 1.8m high |
| Quickscreen pull-up banner | 600, 850, 1,000 or 1,200mm wide. 1.5 or 2.1m high | Cassette system, so the graphic can be swapped. The 600mm template is 1.5m high |
| Extra-wide pull-up banner | 1.5, 1.8, 2, 2.4, 2.7, 2.9 or 3.2m wide. 2.1m high | 1.5m mall height also available |
| Shopping centre pull-up banner | 850, 1,000 or 1,200mm wide. 1.5m high | Double-sided as standard, for walkways |
| SuperWall backdrop | 2.4m, 3m or 6m wide, 2.25m high | 1m-wide custom builds and 1.5m-high shopping centre versions are available |
| Teardrop flag | 2.5m, 3.5m or 4.5m high | Single or double-sided |
| Blade flag | 2.5, 3.5 or 4.5m high | Flat or scoop bottom |
| Superlight and Presenter tables | 600, 800, 1,000 or 1,200mm wide | Straight or curved fronts |
| Plinth | 400mm square, 900mm high | Timber: widths 300 to 600mm, heights 100 to 1,200mm |
| A-series posters | A3 297 x 420mm to A0 841 x 1,189mm | ISO 216 sizes |
The notes below explain how to use each size.
Pull-up banners
Width is the decision that matters most. The Premier comes in four widths: 500, 850, 1,000 and 1,200mm. The 850mm banner at 2.1m high is our most popular size, and the 500mm slimline version is 1.8m high. Quickscreen banners, built for busy areas such as malls and airports, start at 600mm wide and go up to 1,200mm, at 1.5 or 2.1m high (the 600mm template is listed at 1.5m only).
When one banner isn't enough, extra-wide pull-up banners run from 1.5m to 3.2m wide at a standard 2.1m high, so a single banner can act as a backdrop. For a detailed comparison of widths, heights and the ranges, read our pull-up banner sizes guide.
Shopping centres. Our shopping centre pull-up banners are 1.5m high and double-sided as standard, in 850, 1,000 or 1,200mm widths, and extra-wide banners also come at a 1.5m mall height. Check with the centre before you order: many Westfield centres no longer allow pull-up banners at all.

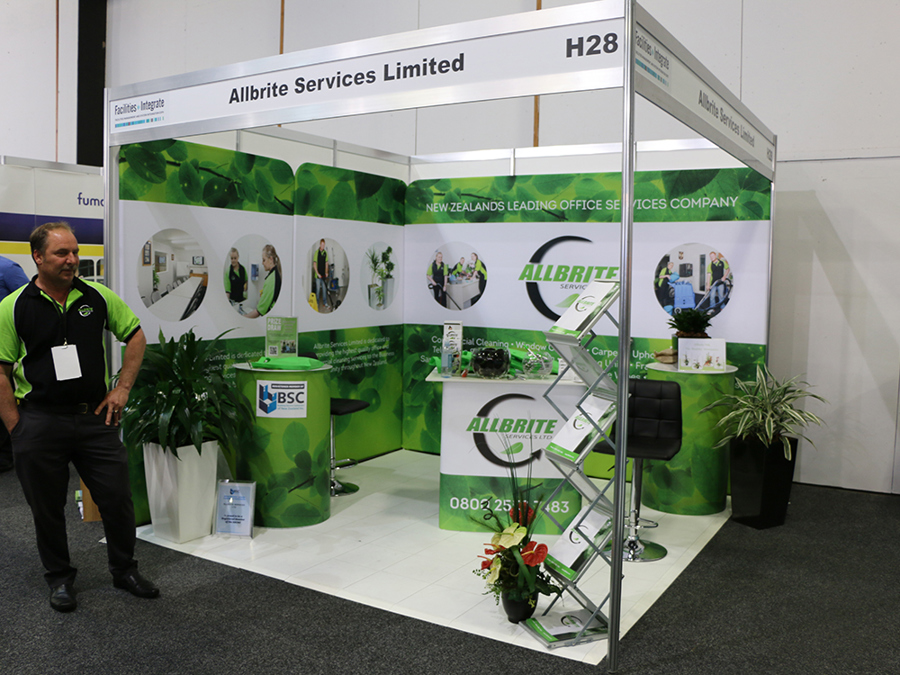

Backdrop walls
The SuperWall is our standard fabric backdrop. The standard widths are 2.4m, 3m and 6m at 2.25m high. A 1m-wide wall is a custom build, not a standard orderable size. Shopping centre-height versions are 1.5m high; ask us about the width you need. Straight and curved versions are available, and custom sizes and shapes can be made.
When choosing a width, keep a join out of the middle of the graphic. One wall at the full width looks cleaner than two smaller walls side by side.

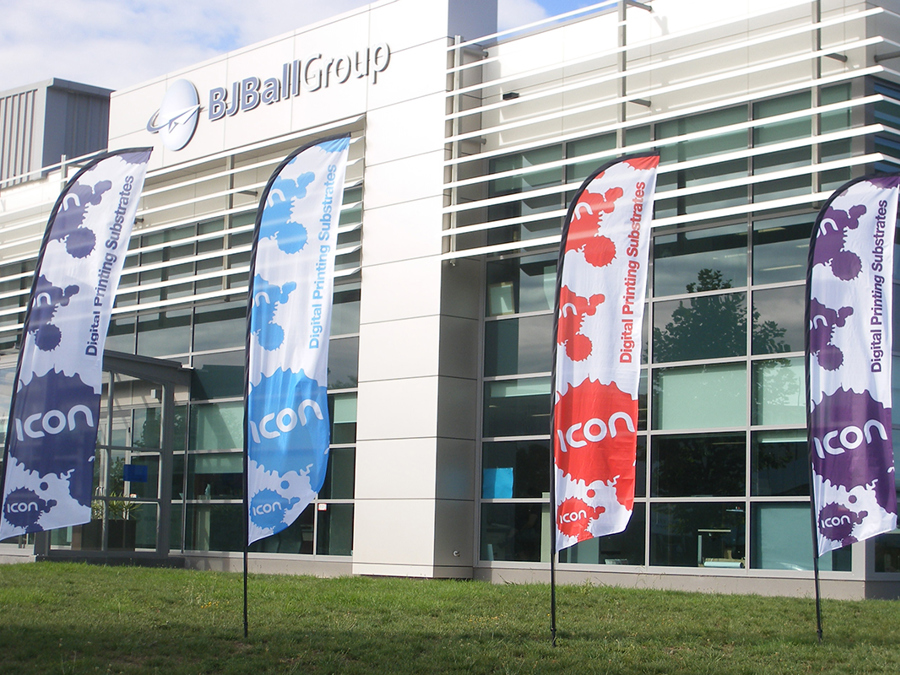

Flags
Flag sizes are quoted by overall height.
- Teardrop flags: 2.5m, 3.5m or 4.5m high, single or double-sided.
- Blade flags: 2.5m, 3.5m or 4.5m high, with a flat or scoop bottom.
Both come with a fibreglass pole, a ground stake and a carry bag. Cross feet, base plates and other bases are extras, so choose the base for the surface you'll be standing it on.
Demo tables
Our Superlight and Presenter demonstration tables come in four widths: 600, 800, 1,000 and 1,200mm, with straight or curved fronts. As a rule of thumb, 600mm suits a tight aisle and 1,000 or 1,200mm leaves room for two people demonstrating. Any of them can be supplied plain or with a printed panel wrap and header.
Plinths
A standard plinth is 400mm square and 900mm high. Our timber plinths come in standard widths of 300, 400, 500 and 600mm, at heights from 100mm to 1,200mm. Portable plinths have bases from 300mm (slimline) to 600mm (jumbo) square, with overhang tops 100mm wider than the base, and are 900mm high unless you ask for something different.
Paper and poster sizes
Posters follow the ISO 216 A series. Each size is half the one above it, and A0 is one square metre.
- A0: 841 x 1,189mm
- A1: 594 x 841mm
- A2: 420 x 594mm
- A3: 297 x 420mm
- A4: 210 x 297mm
- A5: 148 x 210mm
For B sizes, oversize posters and which size suits which job, see our guide to poster sizes.
Exhibition stand footprints
Stand sizes are set by each show, so always confirm yours against the organiser's floor plan. Our guide to exhibition stand sizes and shell schemes shows what fits in the common footprints, from 2 x 2m upwards.
Before you order: three size checks
#1 - Check the space, not just the display
Measure the floor space, the ceiling height and any doors or lifts the display has to pass through. A banner or wall that fits the stand may not fit the route in.
#2 - Check the venue's height limit
Shopping centres and some venues set height limits, which is why so many of our displays come in a 1.5m version. Ask for the limit in writing before artwork starts.
#3 - Use the template for the size you're ordering
Artwork set up for a previous order, rather than the size you're ordering now, is the most common cause of a reprint. Our product pages list templates for their sizes (or ask us for one), and our artwork specifications cover bleed, resolution and file set-up.
Unsure which size will work? Send us the floor plan or a photo with measurements, and we'll recommend a size and send you the template. Call 1300 240 250.
